IBR600B Series

Cloud-Managed Networking for IoT

Cradlepoint COR IBR600B Series

NetCloud Solution Packages with the compact, semi-ruggedized COR IBR600B Series routers are designed for secure, cloud-managed IoT networking. Embedded modems enable wired or wireless WAN connectivity using 4G LTE for the U.S. and Canada and include NetCloud Perimeter to address the biggest gap in IoT: security.

NetCloud Solution Packages include NetCloud software, the router, and 24×7 support with Limited Lifetime Warranty on hardware.

Upgrade to NetCloud Advanced for additional features, including: Advanced VPN and tunneling; carrier, WAN, and LAN analytics; and location-based services.

Key Benefits

• Faster Category 4 LTE modem for (theoretical) download speeds up to 150 Mbps

• Faster routing, VPN and WiFi via a faster processor

• SIM-Based Auto-Carrier Selection

• Dual-modem support with the COR Extensibility Dock

• Supports Router SDK and NCM API

• Dual-SIM Support

• Built-in Mounting Bracket

• Wider Voltage Input Range (9-33 V vs 9-18 V)
• Sleep Mode / Ignition Sensing

General Information

Model:IBR600B (WiFi),
IBR650B (non-WiFi)
Cloud Managed:Yes, with NetCloud Manager
LTE:LTE / HSPA+Carriers / Operators:Verizon, AT&T, T-Mobile
WiFi:802.11 b/g/n (IBR600B only)Ethernet Ports:2 / 2, 4 with Ext Dock (1 GigE)
Material:MetalRuggedized:Yes, IP64, Shock/Vib/Humidity MIL Spec 810G & SAE J1455
Ignition Sensing:Automatic ON & time-delay OFFGPS/GNSS:None
OBDII Support:NoOperating Temperature: -4°F to 140°F
(-20°C to 60°C)
Input Range:9–33 VDCSize:4.6 × 4.1 × 1.1 in
(117 × 104 × 27.3 mm)
Weight:10.1 oz. (285 g)Failover:No
Support:Phone support: 24 hour weekdays with emergency response on weekends, Web: 24×7, Chat: 24×5Dual Modem Capable:Yes, Core Extensibilty Dock

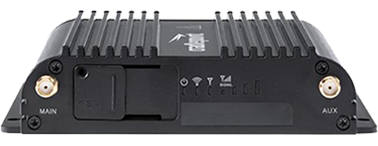

Product Images
